FL1 (Front Loader 1-Axis)

Specifications:



Cell Footprint Dimensions:

Length: 240” (6.1m)

Width: 120” (3.05m)

Height: 87” (2.2m)



Table Dimensions:

Length: 54” (1.37m)

Width: 60” (1.52m)

Table Load Height: 29” (.731m)

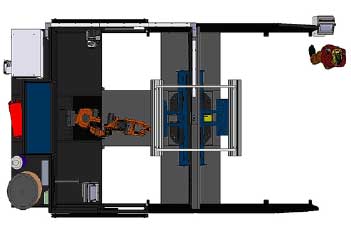

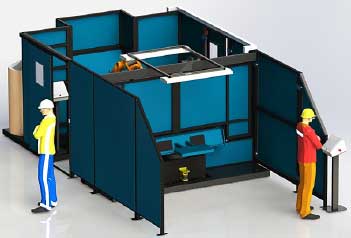

The FL1 (1-Axis Front Loader) from Arcrite Automation features two fixed tables separated by a 180 degree servo driven indexing wall, to protect the operator from potentially harmful sparks and UV radiation during welding.  The cell is designed with light curtains at least 4 feet away from the indexing wall at all times, ensuring that the operator cannot stand in its path and that the cell is RIA safety compliant.  The cell is designed to be highly modular; it is capable of welding small to medium sized parts with any of the major brands of six-axis robotic arms (≤1600mm reach).  Additionally, each of the tables can be reconfigured to be larger, or feature small one or two axis positioners in the event of complex weld path geometry.  There is a door on both sides of the cell for easy entry, primarily for maintenance purposes.  The skid and trailer is one solid body, featuring fork lift pockets in the front for easy installation and relocation.  The combined trailer at the back of the cell has sheet metal protection, adequate space and built-in wiring paths for most major/standard robot controllers, power/wire supply units, and water coolers necessary making this cell

a fully integrated, automated welding solution.
